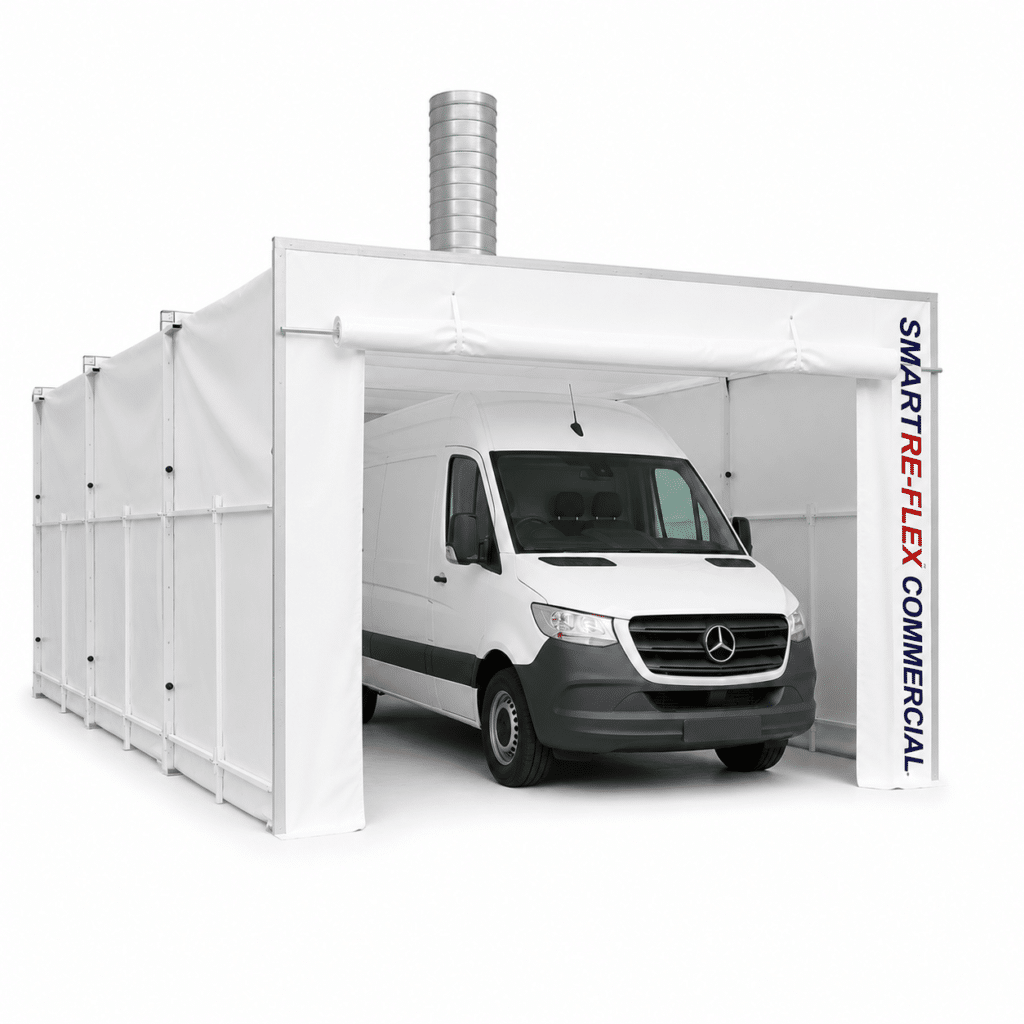

SMARTRE-FLEX COMMERCIAL

SMART repair spray booth commercial

Retractable SMART repair booth for LCVs with powerful extraction and built-in workstation that folds away to just 2.19 metres, freeing up valuable indoor workshop floorspace.

Fixed price

£17,780 ex VAT

• Finance available from £624.08/mo on a 3 year agreement*

Key features

›Retracts from 8.8m to 2.19m, freeing around 75% of the floor
›Spark proof extraction at 4.2m3/s, sized for vans and LCVs
›Built in workstation with paint mixing bench
›Light commercial vehicle size, drive in through the zip up front
›Three Andreae dry filters for high extraction volume
›Same design as the standard booth, free standing

Get a quote → Call 01753 59 59 55

Suitable for

For bodyshops and fleet operators carrying out SMART repairs, panel painting and priming on light commercial vehicles.

Industries

Automotive

Overview

Van and light commercial work needs a bigger compliant bay, not a permanent one. The SMARTRE-FLEX COMMERCIAL runs 8.8 metres long, 4.1 wide and 3.4 high, with a 3.0kW spark proof fan extracting at 4.2m3/s through Andreae dry filter media. It carries the same personnel door, workstation and paint mixing bench as the standard booth, and retracts back to 2.19 metres between jobs.

Recommended uses

SMART repairs, panel painting, priming and wheel refurbishment on vans and light commercial vehicles, for bodyshops, fleet operators and dealerships. The zip up front opening gives easy vehicle access; the replaceable air inlet filter panel gives an enclosed clean air environment when closed.

4.1m W x 3.4m H x 8.8m L
Retracts back to 2.19m
Work area of 4 modules

Exhaust fan: 1 x 3.0kW 3 phase belt driven axial fan with extraction rate of 4.2m3/s. Spark proof fan and motor
Exhaust filter: filtration by way of 3 x Andreae corrugated cardboard dry filter media at 1000mm high mounted in the exhaust chamber
Exhaust ducting: fan supplied with a 630mm dia duct connector for vertical extract
The system is free standing and only requires ducting penetration through an outside wall to provide ventilation to the work area

Work area constructed from 4 modules of powder coated steel tube framework with semi clear reinforced flame retardant PVC sheeting attached to the inside (530g/m2, 0.45mm, BS7837:1996)
Zip up front opening for easy access
Replaceable air inlet filter panel in the centre section providing an enclosed clean air environment
Plenum body: 1.0mm galvanised sheet metal of modular design, turret punched, pre-folded and ready for easy bolt together assembly, c/w personnel door and workstation paint mixing bench

The system should be installed in accordance with HSG140 paragraphs 221 and 222
The Hazardous Zone 2 area extends to a minimum of 2m either side and front of the extended work area
Supplied with a documented maintenance programme; failure to comply may cause warranties to become null and void

LCV size: 8.8m L x 4.1m W x 3.4m H
Infrared drying lamps

At a glance

Price £17,780

Category SMART repair booths

Get a quote

Frequently asked questions

The work area is 8.8m long, 4.1m wide and 3.4m high, sized for vans and light commercial vehicles including standard panel vans. Send us your largest vehicle and we will confirm fit.

It is a four module work area rather than three, a metre taller and two metres longer, with a 3.0kW fan at 4.2m3/s in place of the 0.75kW unit. Layout and features are otherwise the same.

Three Andreae corrugated cardboard dry filter media at 1000mm high, mounted in the exhaust chamber, with a 630mm duct connector for vertical extract.

£17,780 ex VAT supplied and installed, with finance available. Payment is 50% on order, 30% prior to dispatch and 20% on completion.

A qualified electrician for all electrical supply and connections (excluded from the price), and ducting penetration through an outside wall.
