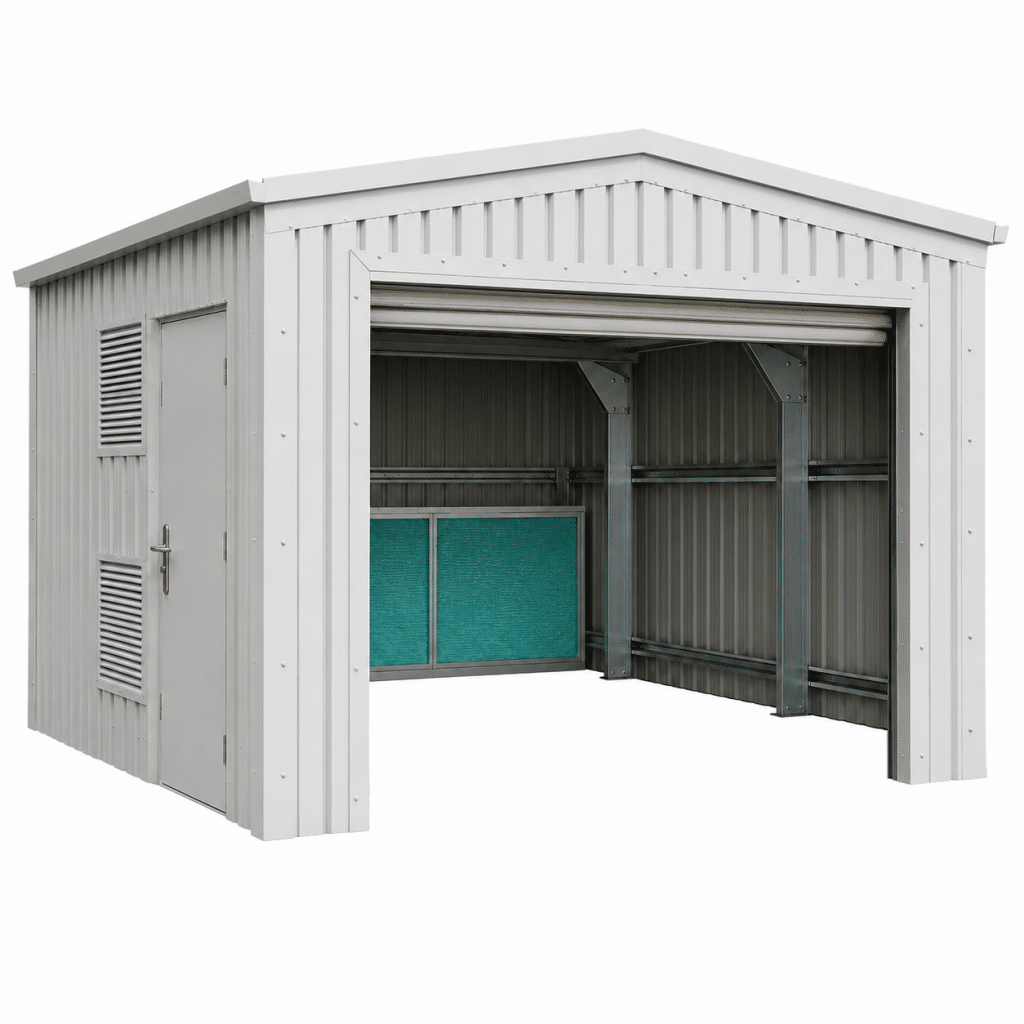

SMART-X.T.N.

SMART Repair Spray Booth | External

The SMART-X.T.N. external spray booth frees up valuable indoor floor space by moving SMART Repairs outside into a controlled environment. Standard and LCV sizes are available, accommodating full-size cars and light commercial vehicles with room to work around them.

Finance example
From £655 per month
Contact us for a quote. Finance available.
• Finance available, with prices starting from £655 per month. Ask us for a bespoke quote and financing.
Key features
  • No planning permission required*
  • Fully compliant with HSE legislation on spray paint booths
  • Rear paint fume extraction to maximise work space
  • DRIP STOP anti-condensation ceiling panels
  • Standard size: 7.0m L x 4.0m W x 2.4m H
  • 1.1kW (3-phase or single-phase) spark-proof belt-driven axial fan, 2.06m3/s extraction rate
  • 10.7m/s airflow
  • 1 x 2 stage paint stop filtration (900mm filter media)
  • 500mm exhaust ducting with jet cowl
  • 3 x 2.1m manually operated roller door, plus locking personnel access door
  • Unique ground anchor system
  • Huge space-saving solution
  • 12-month warranty*
Suitable for

Suited to Dealerships, Car Supermarkets, PDI Centres, Vehicle Auctions, Vehicle Hire centres and others performing SMART Repairs and paint spraying who want to keep that work out of the workshop.

Industries
Automotive bodyshops Car supermarkets Dealerships PDI centres SMART repair Vehicle auctions Vehicle hire centres

Overview

The market-leading SMART repair external spray booth SMART-X.T.N. is designed to free up your workshop space and increase productivity by carrying out SMART Repairs outside in a controlled environment. It’s perfect for Dealerships, Car Supermarkets, PDI Centres, Vehicle Auctions, Vehicle Hire centres and others performing SMART Repairs and paint spraying.

With standard and LCV size available, it comfortably accommodates a full-size and light commercial vehicles with room to work around it. The HSG140-compliant 1.1kW spark-proof extraction system delivers 0.7m/s airflow through the booth face, with 1 x 2 stage paint stop filtration. ATEX-rated LED roof lights and skylights fitted as standard. Galvanised steel frame to BS EN 10346:2009, Plastisol-coated cladding, anti-condensation barrier. Supplied and installed as a complete, self-contained unit.

Recommended uses

SMART repair and paintwork refinishing on cars or light commercial vehicles, carried out outside in a controlled environment to free up indoor workshop floor space.

  • Standard size: 7.0m L x 4.0m W x 2.4m H
  • Enquire for LCV sizes
  • Lighting
  • Infrared lamps
At a glance
Price From £655/mo
Category Spray Booths
